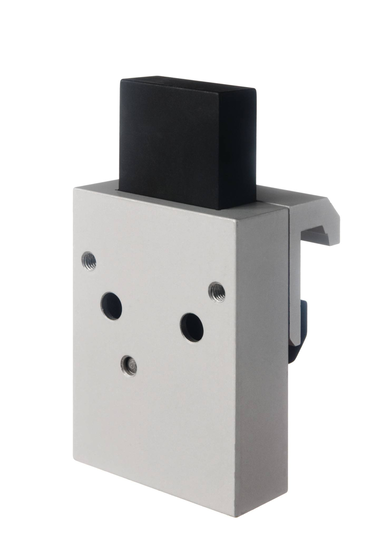

Dräger Universal Mounting Bracket, M5 Holes at 22 mm Spacing
A universal mounting bracket with M5 drill holes at 22 mm spacing, fitting standard rails from 25 x 8 mm up to 35 x 10 mm for attaching devices.
This Dräger universal mounting bracket clamps to a standard rail and carries M5 drill holes spaced 22 mm apart on its mounting face. Devices with a matching M5 pattern at that spacing bolt directly to it, giving a fixed mounting on the rail. The bracket fits standard rails from 25 x 8 mm up to 35 x 10 mm, which covers the rail profiles in general use on beds, trolleys, pendants and workstations.
It provides the mechanical interface only; the fasteners and torque for the device side follow that device's own documentation. It is listed for intensive care, neonatal intensive care and operating room use, across adult, paediatric and neonatal patient groups. It is used where equipment attaches by bolt pattern rather than by a proprietary hook, typically monitors, pumps, control boxes and third-party housings mounted at the bedside or in theatre.
The larger M5 thread and wider 22 mm spacing distinguish it from the M4 bracket in the same range, and the two cannot be substituted for one another, so the device's hole pattern should be checked against the part number before the order is raised. HumaNova supplies this bracket to hospitals, clinics and laboratories across the United Arab Emirates and the wider GCC.
It is ordered under part number MP00636, GTIN 4048675389255, and is manufactured in Germany. When requesting a quotation, confirm the rail dimensions, the thread size and hole spacing required, and the quantity. Pricing is issued by request for quotation. Both bracket variants can appear on one quotation where a mixed set of devices is being mounted.
